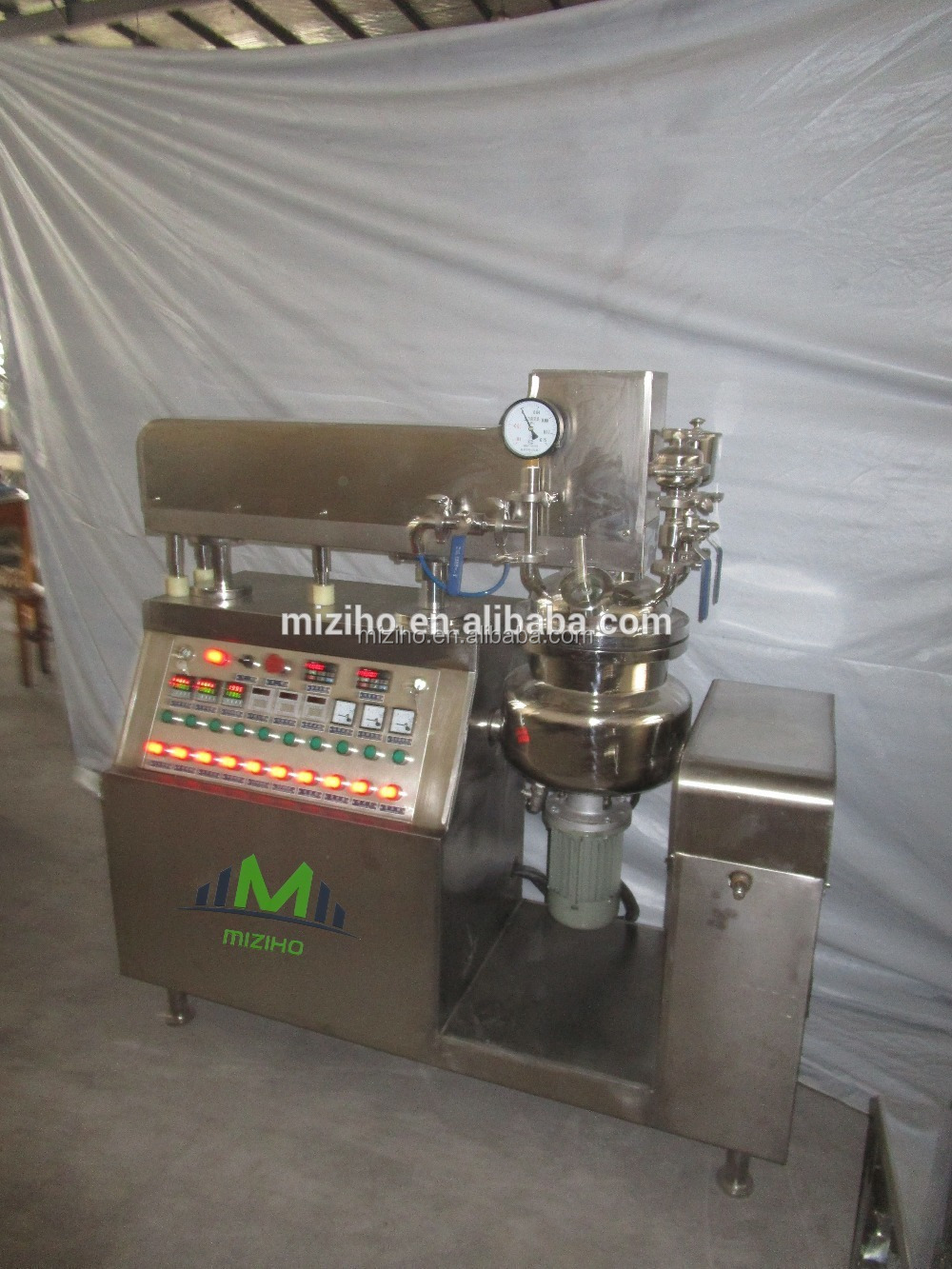

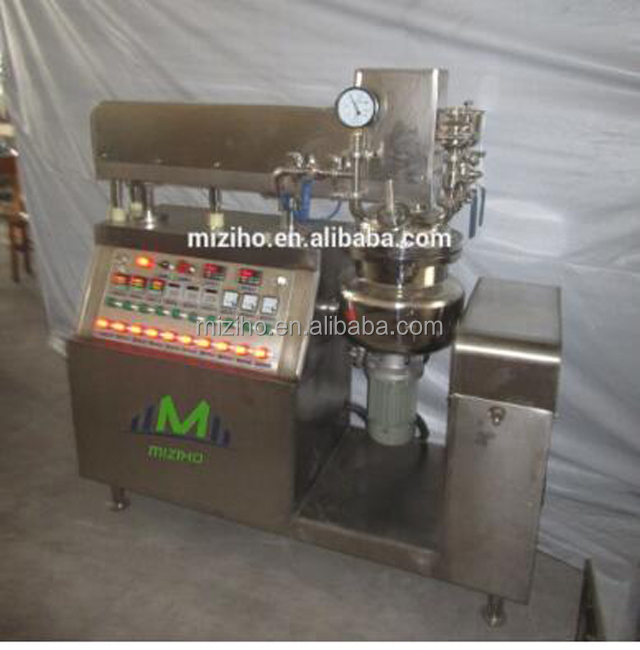

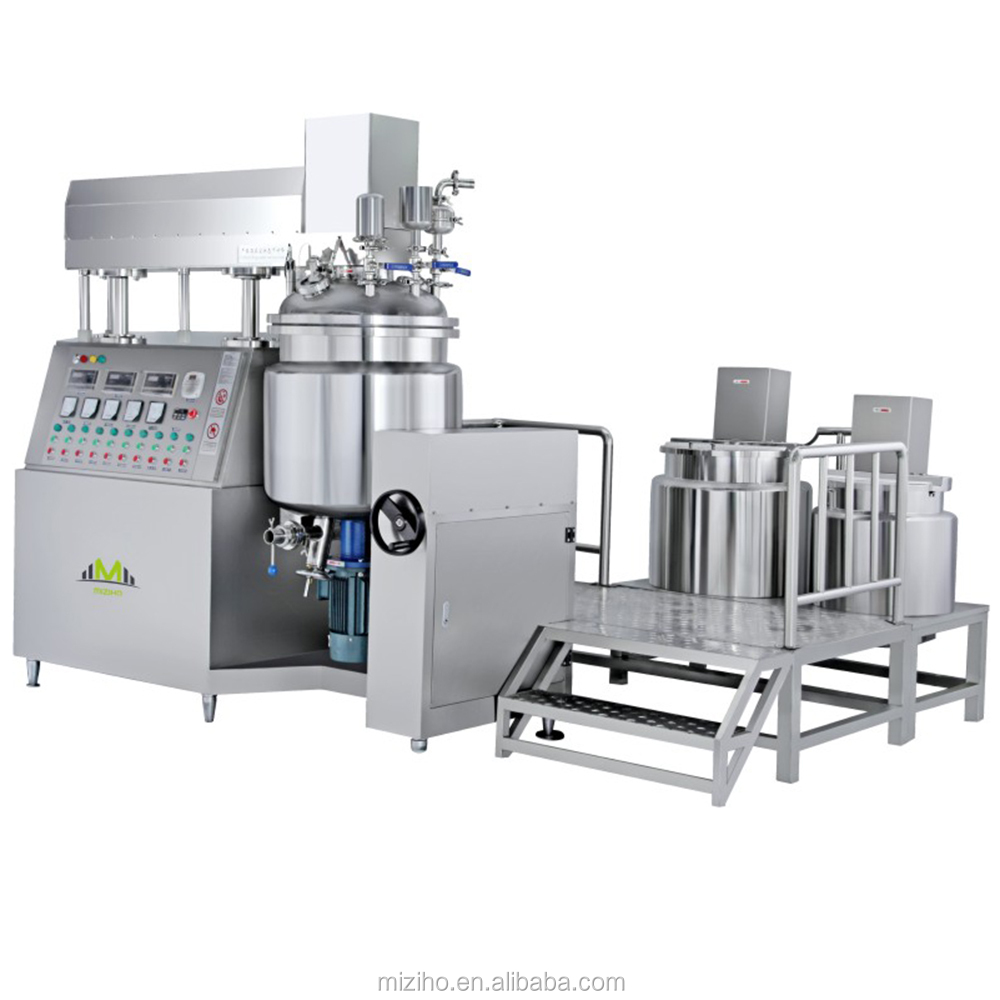

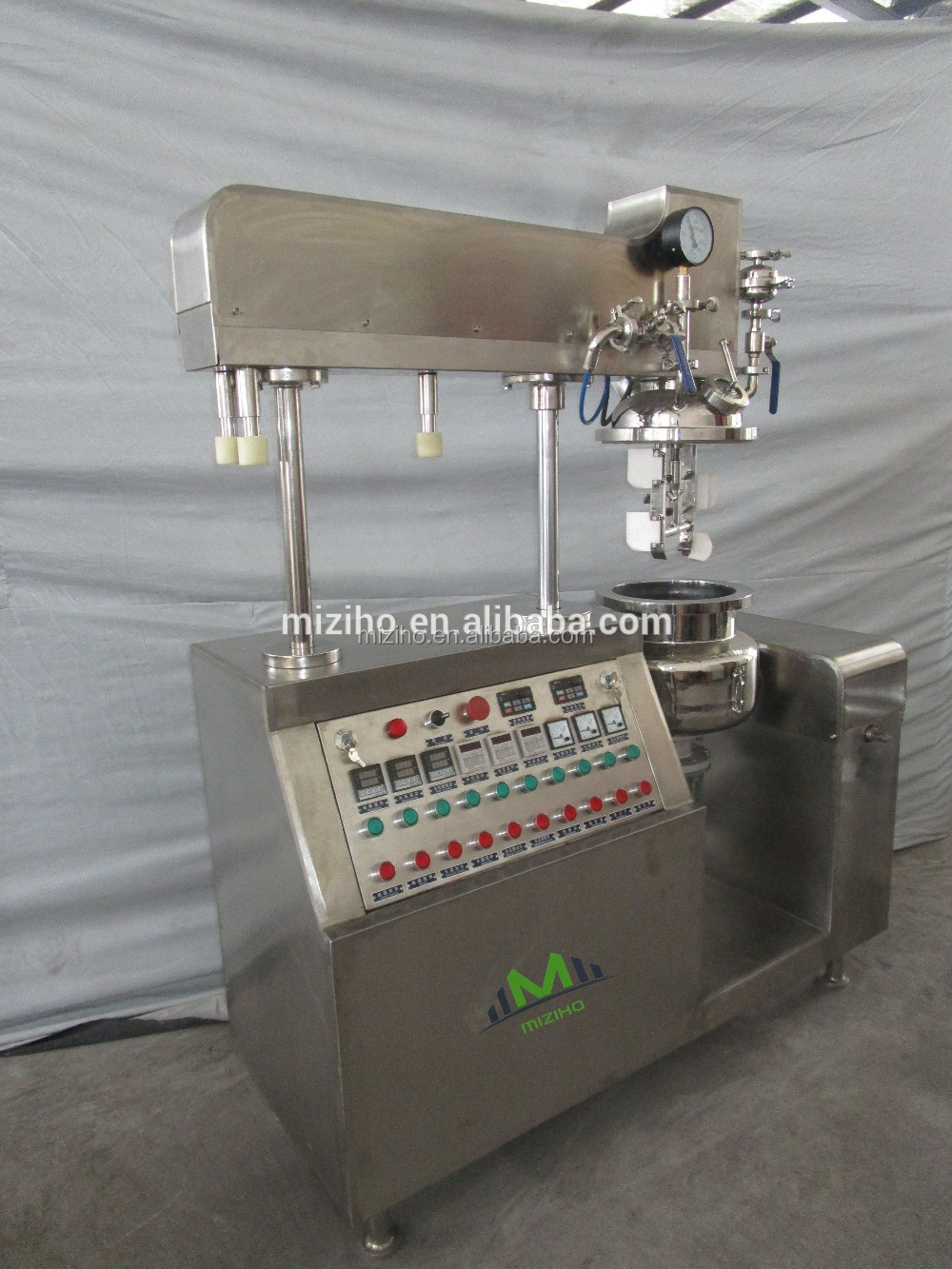

• Complete System: Consists of pretreatment boiler (oil & water boilers), vacuum emulsification blending boiler, vacuum pump, pouring-out system, and electric control/steam heating systems.
• Versatile Operation: Integrated functions including professional mixing, homogenizing, heating, and high-shear emulsification.
| NO | Component Name | Technical Parameters | Main Brand |
|---|---|---|---|
| 1 | Main Pot | Design volume: 12.5L | Working volume: 10L | - |
| 2 | Material & Thickness | Inner Layer: 4mm (SUS316L, 400MESH Polishing) Cover: 7mm | Stirring blade: 5mm |
SUS316L / SUS304 |
| 3 | Technical Holes | Lid: Scraper endoscopic, feeding, Mirror light, Vacuum, Pressure date, Spices add. Pot Bottom: Discharge & Temperature detection. |
- |

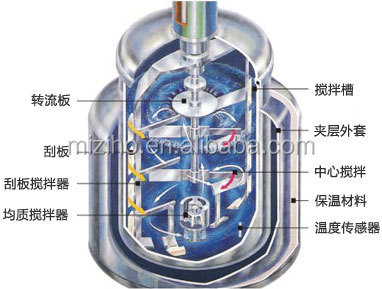

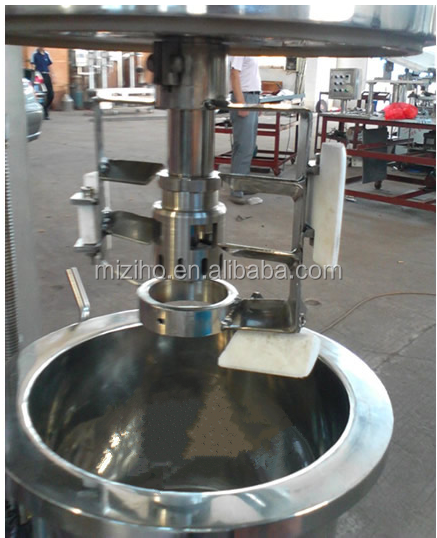

| 4 | Stirring System | Anchor agitator with PTFE scraping blade (Wall-snapping). Dual set stirring (Forward/Reverse). | Sumitomo / NSK / Omron |
| 5 | Homogenizer | Solid SUS316L material, high precision laser machining. Power: 1.1KW, 0-3040r/min. | ABB / Panasonic |
| 6 | Sealing System | Silicone rubber O-ring; German Burgmann mechanical seal for high speed. | Burgmann (Germany) |
| 7 | Vacuum System | Water ring vacuum pump to avoid blockage. Motor: 0.75KW, 216m3/H capacity. | Shanghai Z.X. |
| 8 | Electric Box | SUS304-2B casing. Manual push-button control. Displays speed, temperature, and time. | Fuji / Schneider / Omron |
| 9 | Parameters | Net weight: 150 kg | Voltage: 480V, 50-60HZ | GMP Standard |
