The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Features and Advantages

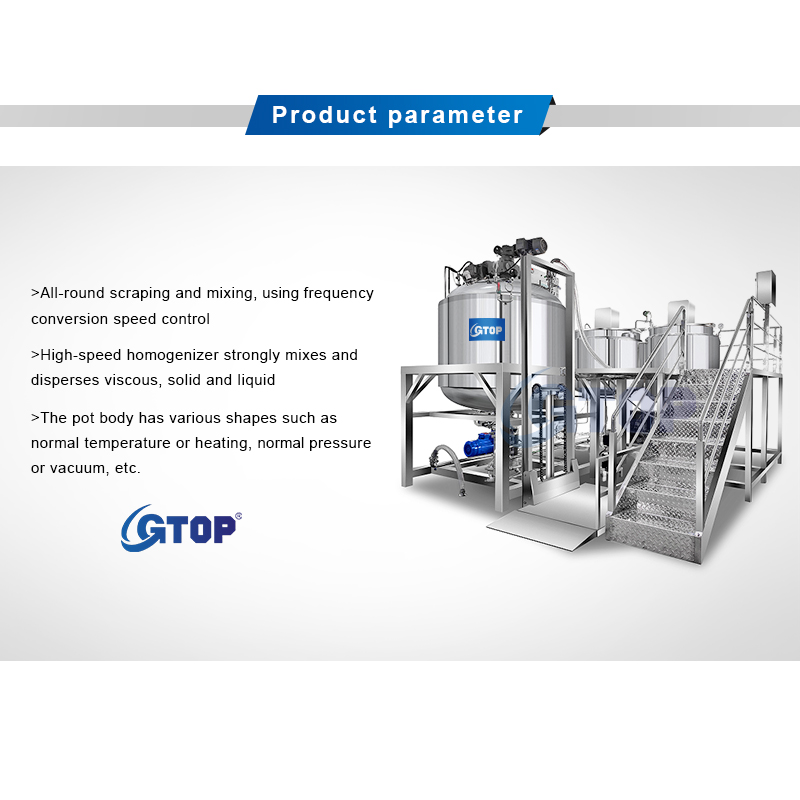

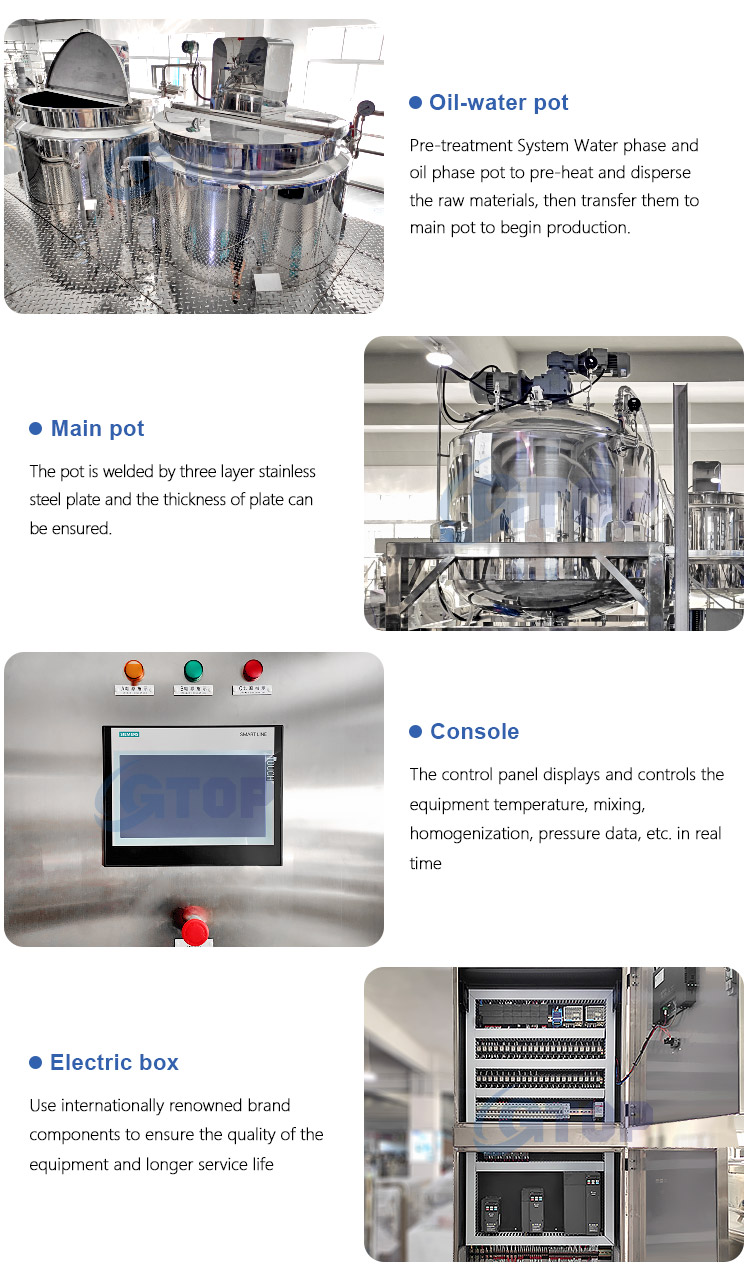

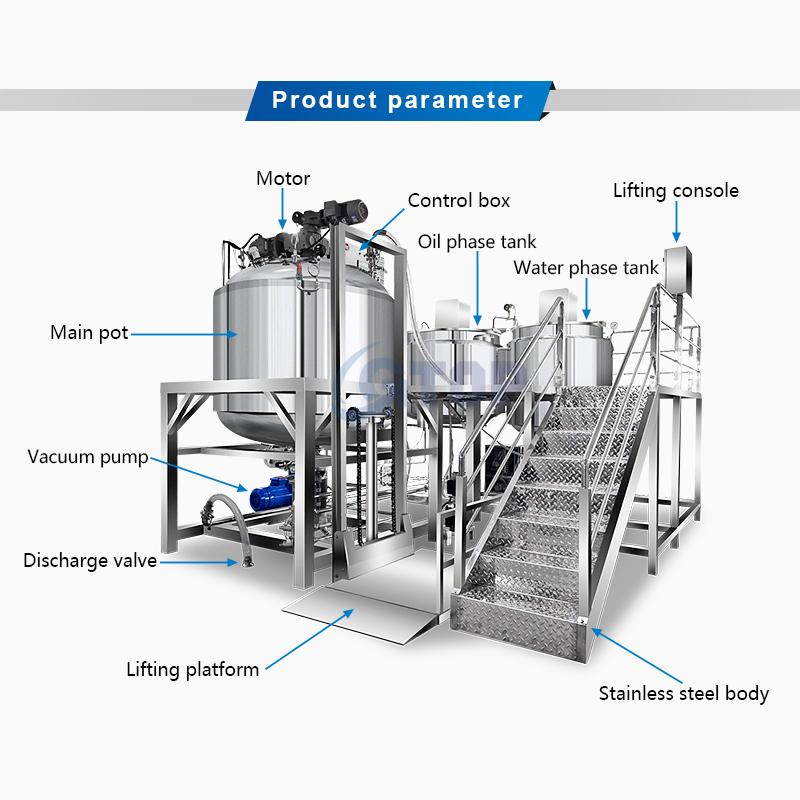

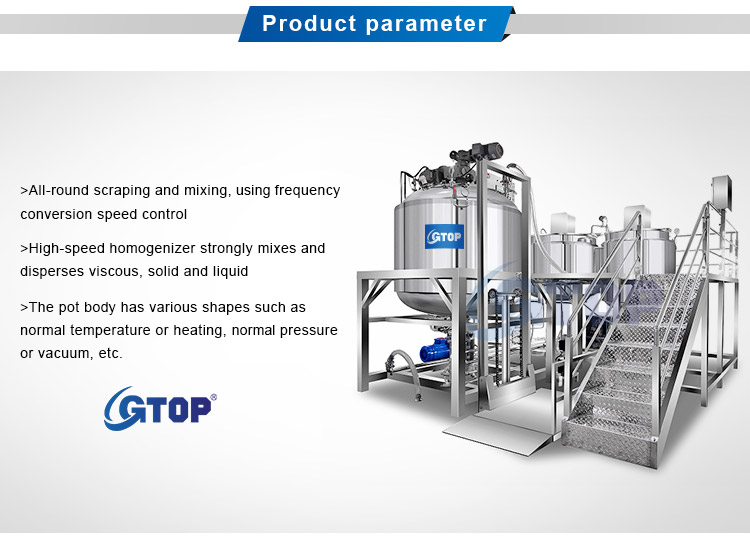

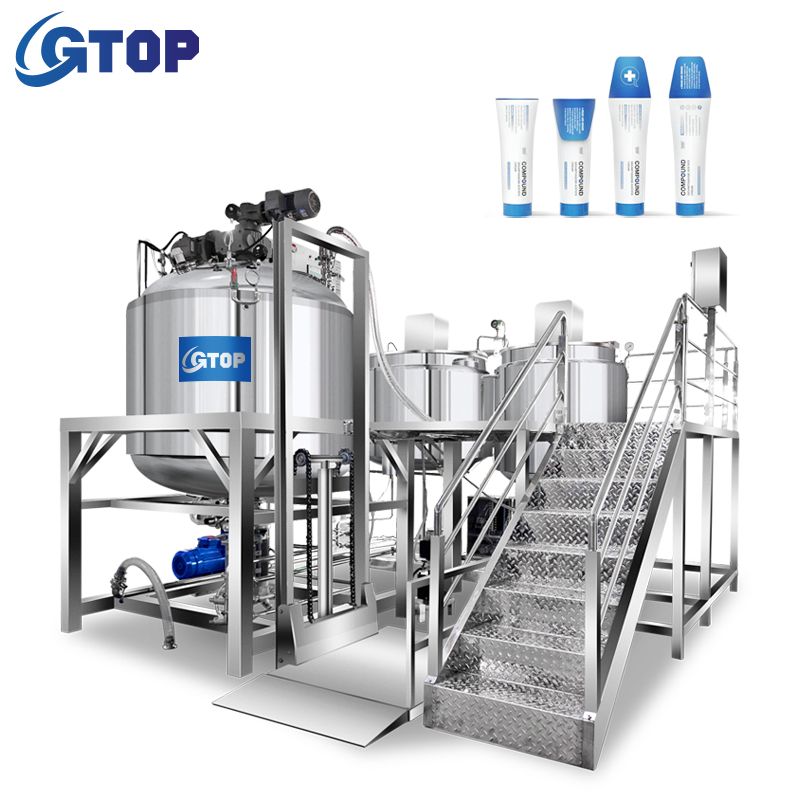

The vacuum emulsifying mixer machine is composed of water pot, oil pot, emulsifying pot, operation platform, vacuum system, lifting system etc.
Material can be heating or cooling according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer's requirements.
The tank body are made of the high quality stainless steel and all contact parts adopt the SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.

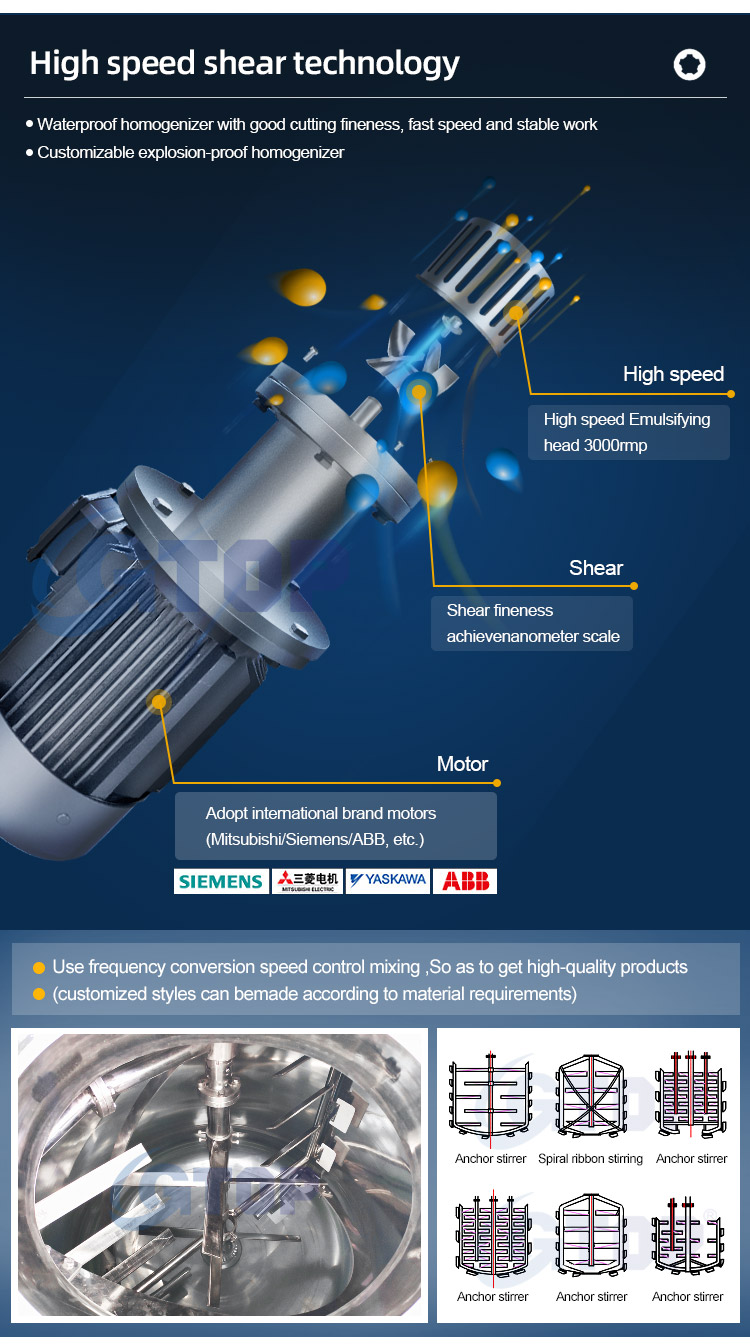

Various forms of blending vanes are suitable for production of different types of products.
The wall scraping mixer adopts frequency converter to adjust the mixing speed, suitable for various products based on clients' requirements.
The mixing system includes single-way mixing, double-way mixing and helical ribbon mixing. Lifting systems include single-cylinder and double-cylinder lifting. Customization is available.
Vacuum defoaming can make the material reach requirement of aseptic. It uses vacuum to suck material, especially powder, avoiding dust contamination.
Fully in accordance with the GMP standard production and passed CE certification.
Technical Specifications
| Model |
Capacity(L) |
Mixing power(kw) |
Mixing speed(r/min) |
Homogenizing power(kw) |
Homogenizing speed(r/min) |
Heating method |
| GT-E-20 | 20 | 0.37 | 0-63 | 0.75 | 0-3000 | Steam heating or electric heating (optional) |
| GT-E-50 | 50 | 0.37 | 0-63 | 2.2 | 0-3000 |
| GT-E-100 | 100 | 1.5 | 0-63 | 3 | 0-3000 |
| GT-E-150 | 150 | 1.5 | 0-63 | 3 | 0-3000 |
| GT-E-200 | 200 | 1.5 | 0-63 | 4 | 0-3000 |
| GT-E-350 | 350 | 2.2 | 0-63 | 4 | 0-3000 |
| GT-E-500 | 500 | 2.2 | 0-63 | 5.5 | 0-3000 |
| GT-E-1000 | 1000 | 5.5 | 0-63 | 9 | 0-3000 |
| GT-E-2000 | 2000 | 5.5 | 0-63 | 11 | 0-3000 |
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
Frequently Asked Questions
What materials are suitable for this vacuum emulsifying mixer?
It is ideal for producing pastes, creams, gels, lotions, ointments, and toothpastes in the cosmetic, pharmaceutical, and food industries.
What are the available heating methods?
The machine supports both steam heating and electric heating, which can be selected based on your specific factory requirements.
Is the machine compliant with international standards?
Yes, the machine is produced fully in accordance with GMP standards and has passed CE certification for safety and quality.
What material is used for the parts in contact with products?
All contact parts are made of high-quality SUS316L stainless steel with mirror polishing to ensure hygiene and durability.
Can the mixing speed be adjusted?
Yes, the wall scraping mixer is equipped with a frequency converter, allowing you to adjust the mixing speed to suit different product viscosities.
How does the vacuum system benefit the production process?
Vacuum defoaming ensures the material reaches aseptic requirements and prevents dust when sucking in powder materials.
