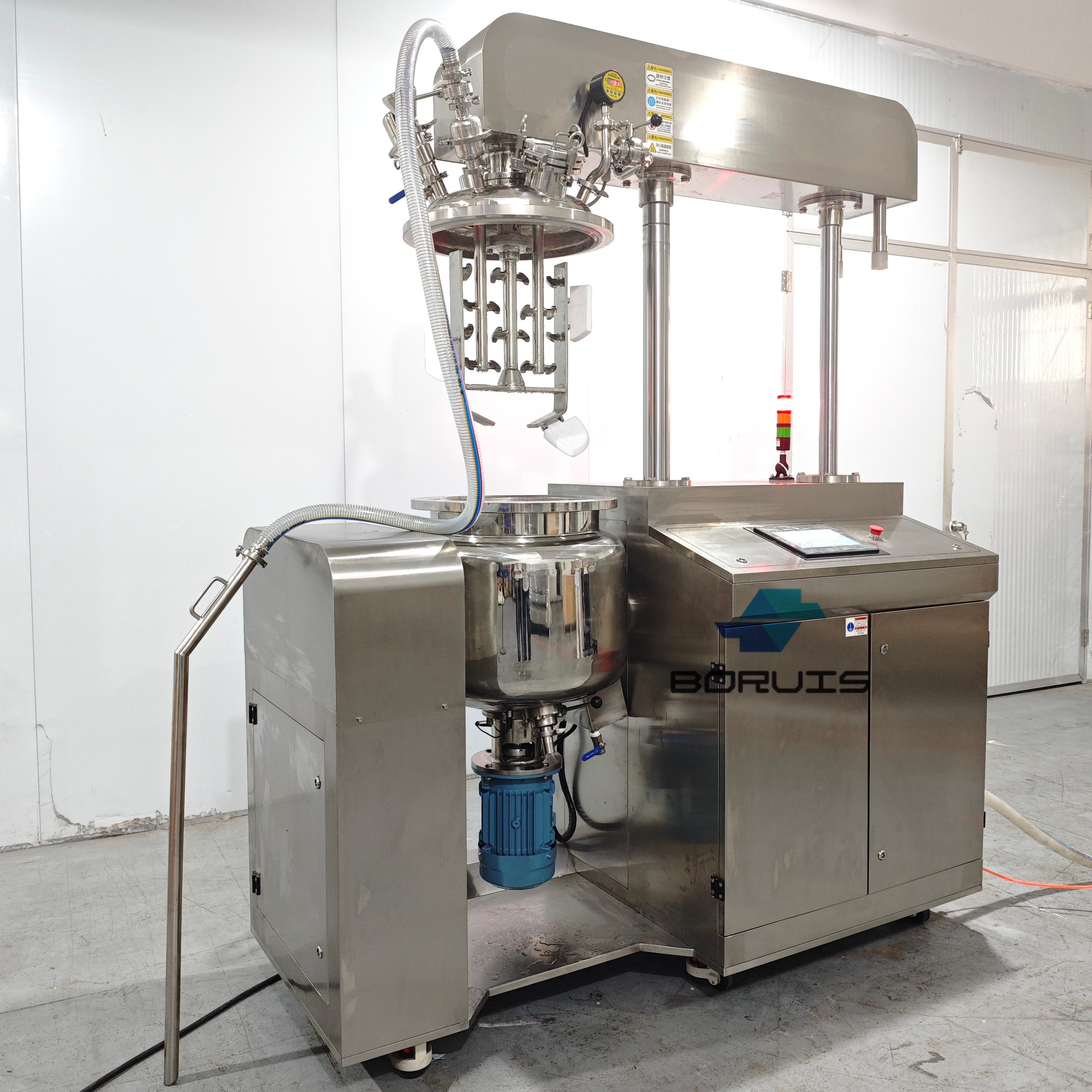

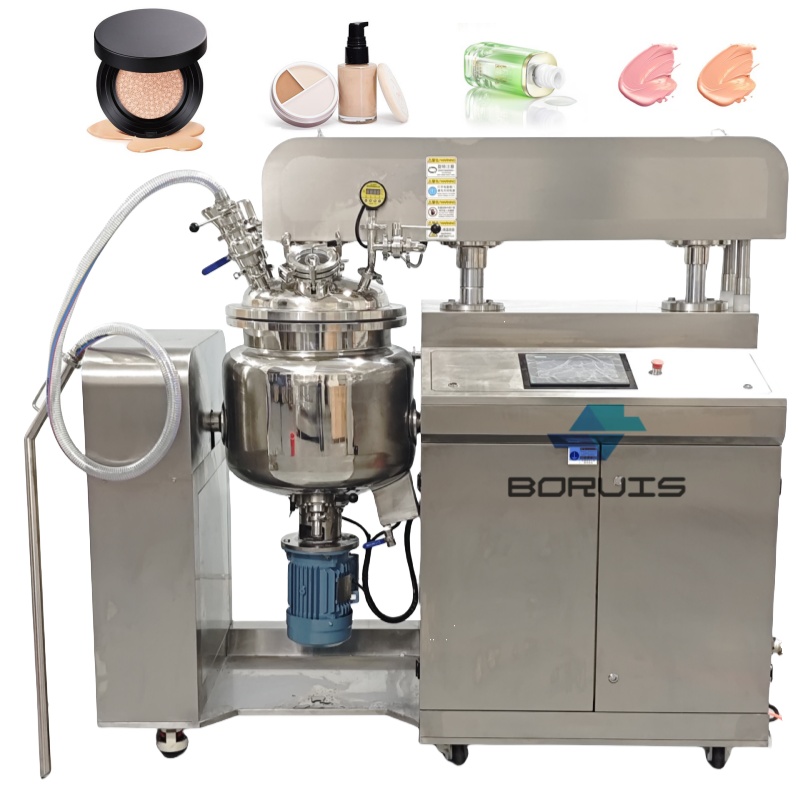

Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
1 / 5
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine
Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine

Cosmetic Machinery Cream Manufacturing Equipment Facial Body Lotion Maker Making Mixer Vacuum Homogeneous Emulsifying Machine

Send Inquiry

Product Description

Product Description

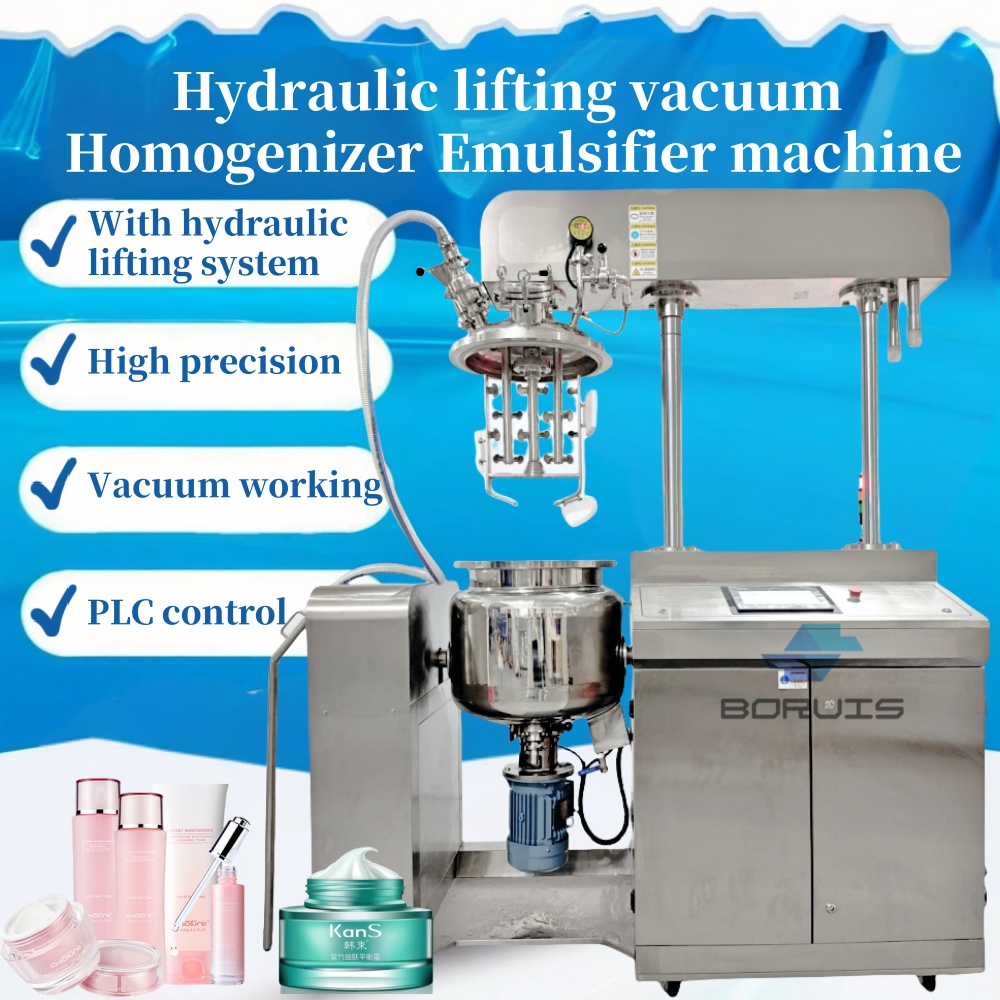

Vacuum Emulsifying Mixer System

Specification

Model Effective Capacity (L) Emulsifier Agitator Dimension (mm)
KW R/min KW R/min L W H Max Height
JF-A-20 20 0.75 0-3000 0.37 0-40 1800 1600 1850 2700
JF-A-50 50 2.2 0-3000 0.37 0-40 2700 2000 2015 2700
JF-A-100 100 3 0-3000 1.5 0-40 2920 2120 2200 3000
JF-A-150 150 3 0-3000 1.5 0-40 3110 2120 2200 3100
JF-A-200 200 4 0-3000 1.5 0-40 3150 2200 2550 3100
JF-A-350 350 4 0-3000 2.2 0-40 3650 2650 2700 3600
JF-A-500 500 5.5 0-3000 2.2 0-40 3970 2900 3150 3950
JF-A-1000 1000 11 0-3000 4 0-40 3900 3400 3150 4550
JF-A-2000 2000 15 0-3000 7.5 0-40 4850 4300 3600 No rise and fall
Note: In case of nonconformity of the data in the form due to technical improvement or customization, the real object shall prevail.

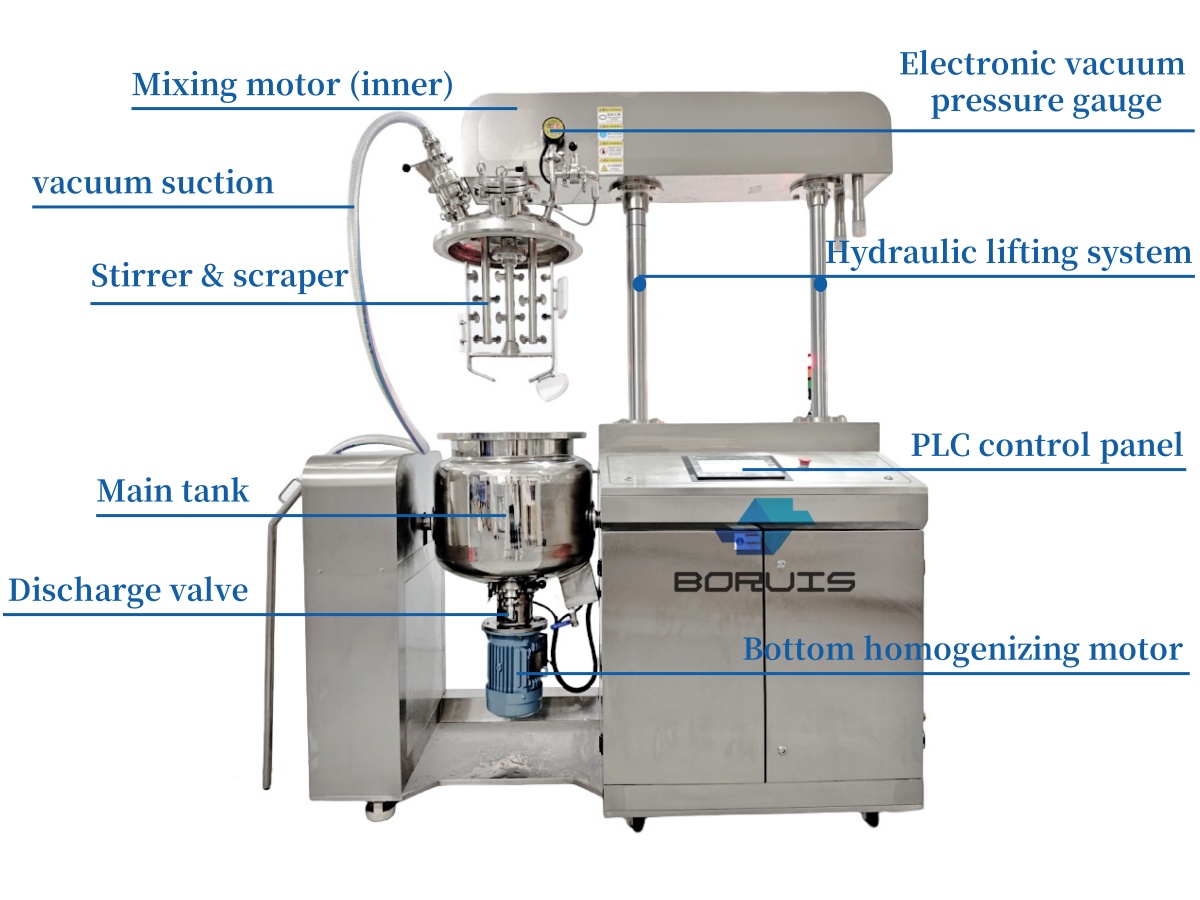

Technical Specifications Diagram
It is suitable for the production of ointment and cream products in cosmetic and chemical plants. The emulsifying effect is more prominent for materials of high base viscosity and high solid content.

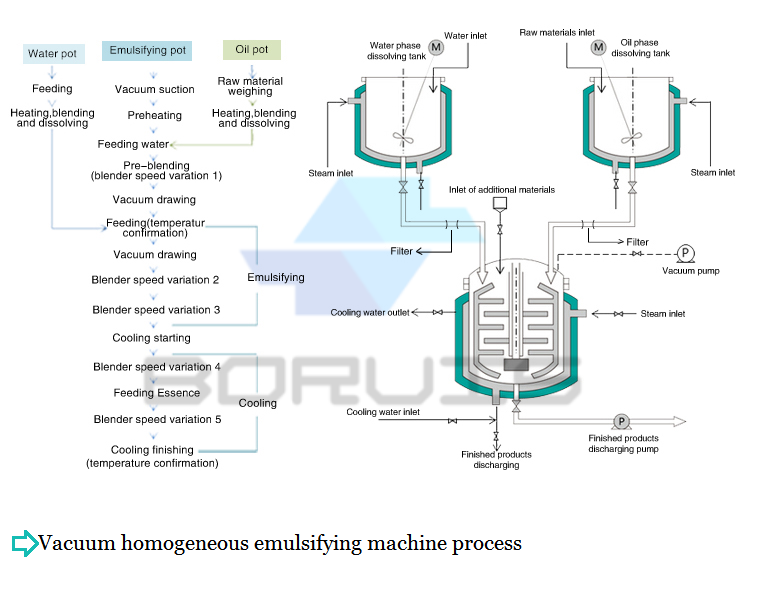

Process Flow Diagram
Component Assembly View 1
Component Assembly View 2

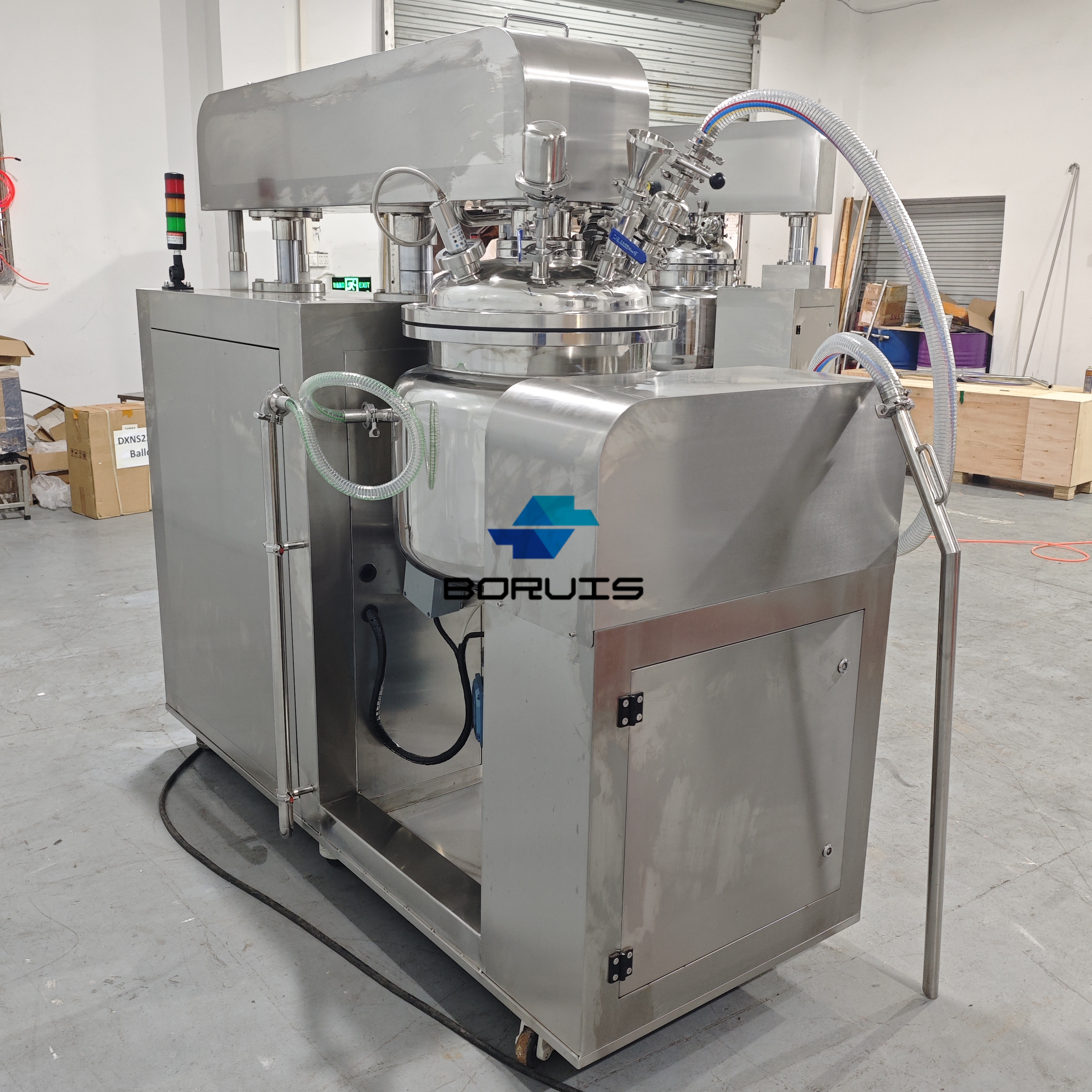

Component Assembly View 3
Technical Structure Overview 1
Technical Structure Overview 2

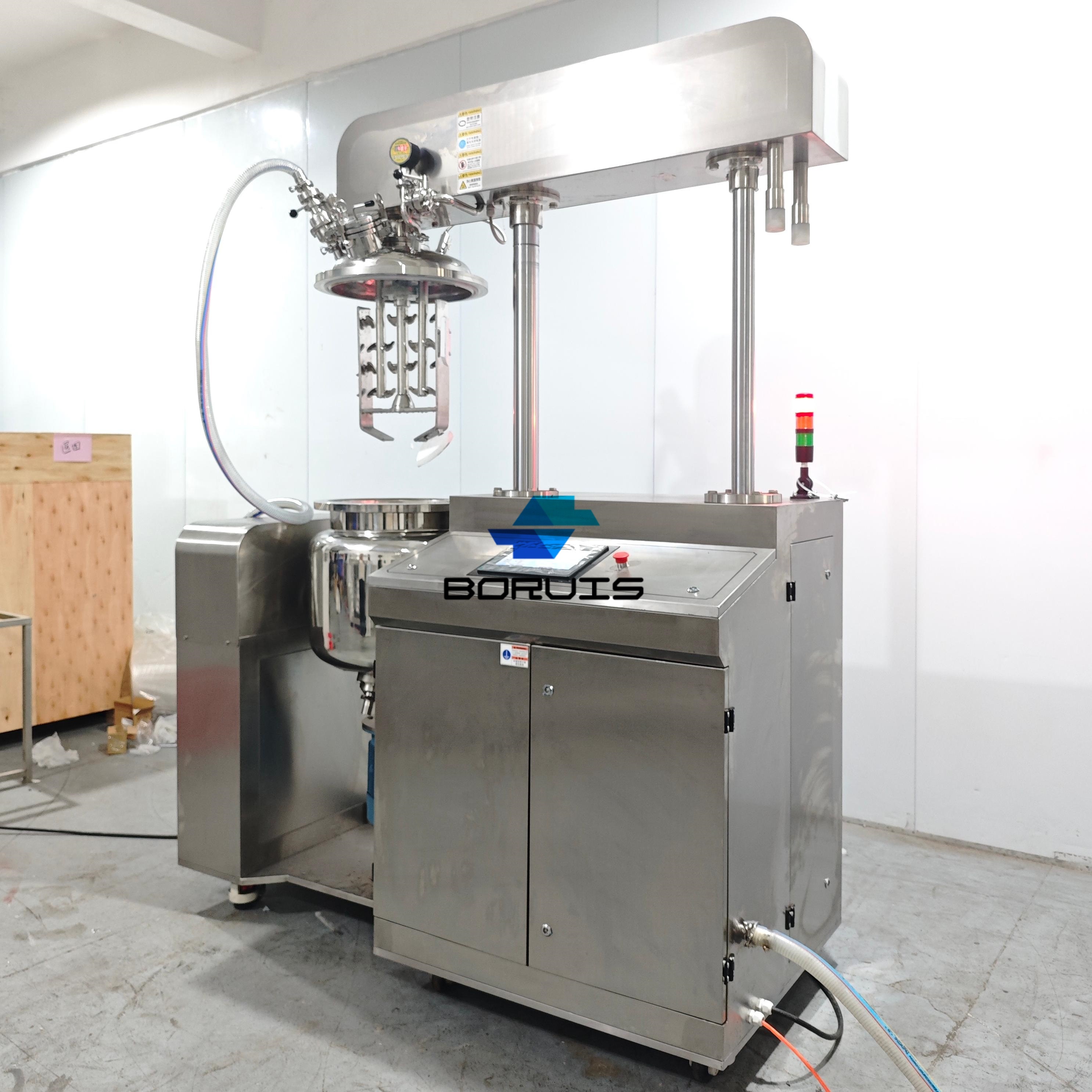

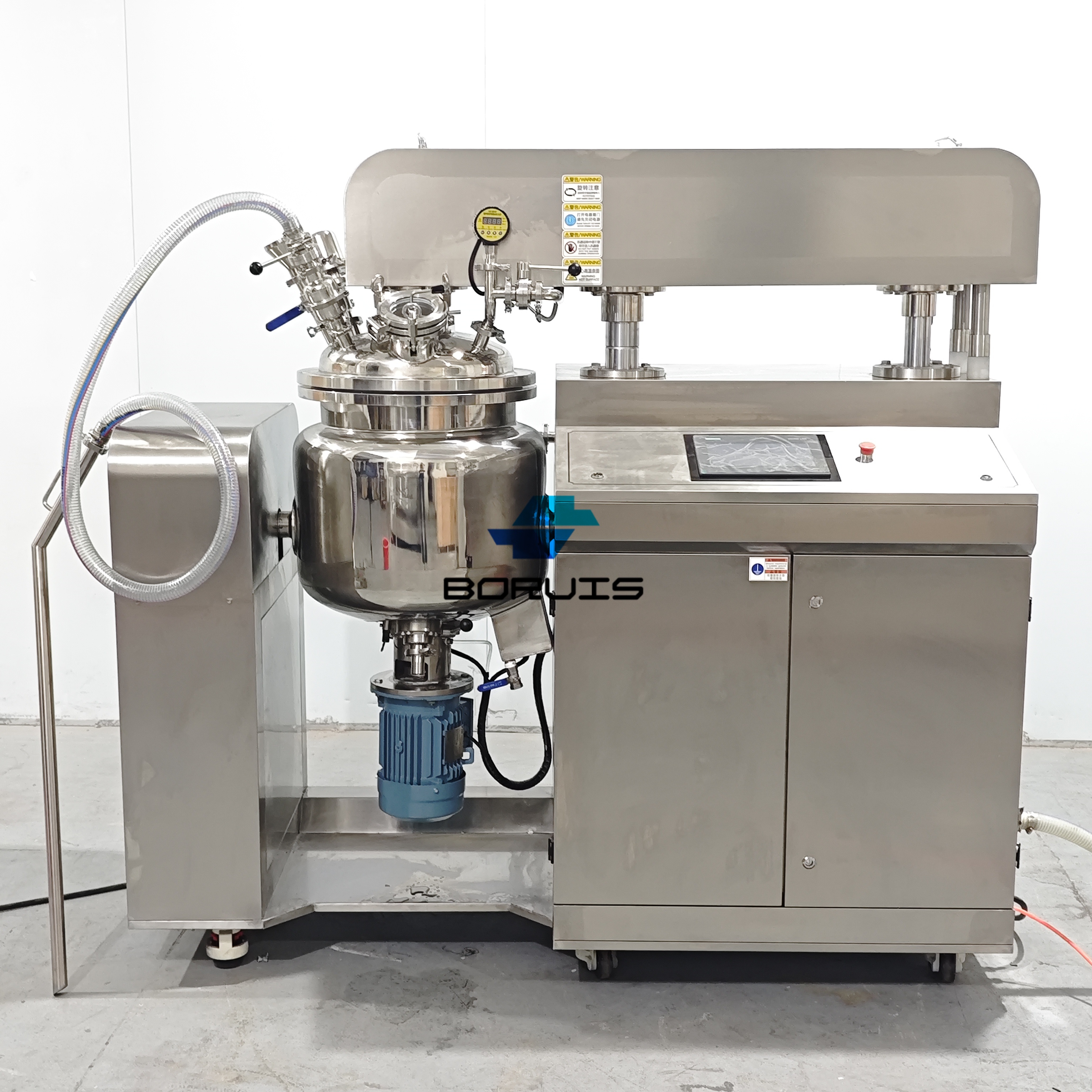

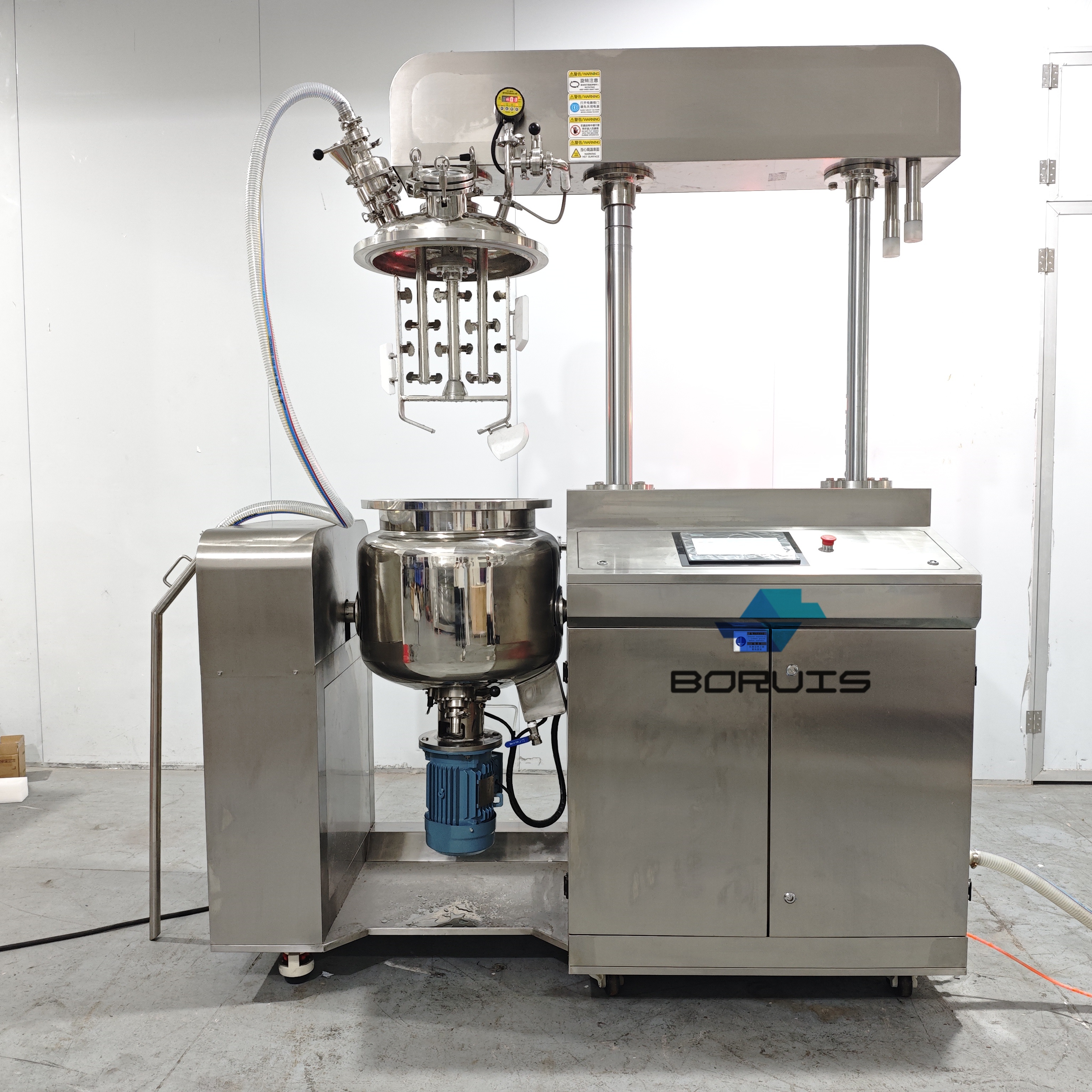

The machine unit is composed of a pretreating boiler, vacuum emulsifying and blending boiler, vacuum pump, hydraulic system, dumping system, electric control system, and working platform, etc.

Key Design Highlights & Features:

  • Featured by simple operation and highly stable system performance.
  • Excellent homogenizing performance and high production efficiency.
  • Convenient cleaning, space-saving layout, and robust structural configuration.
  • High degree of automation.

Product Details

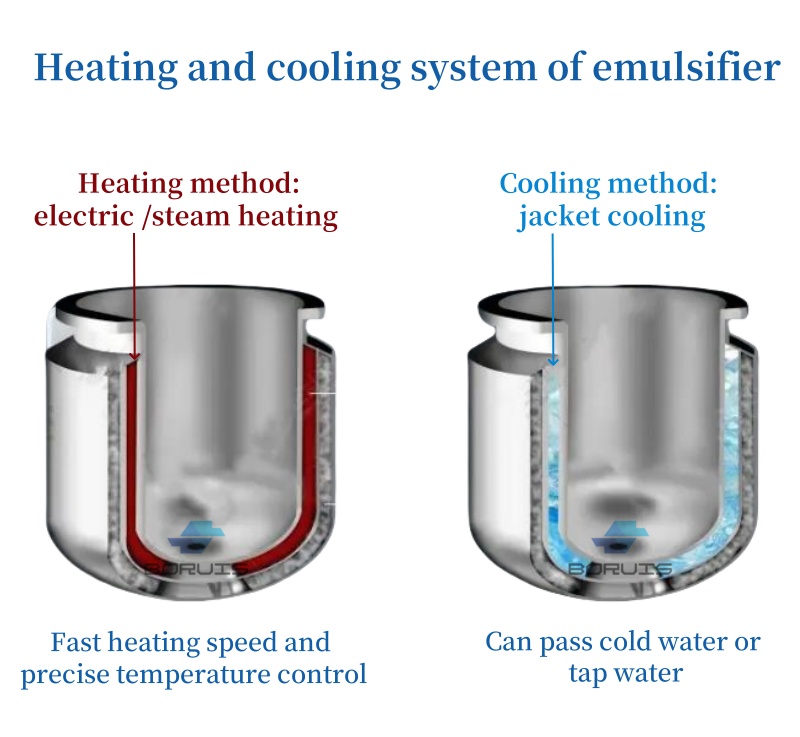

Boiler Internal Structure Detail

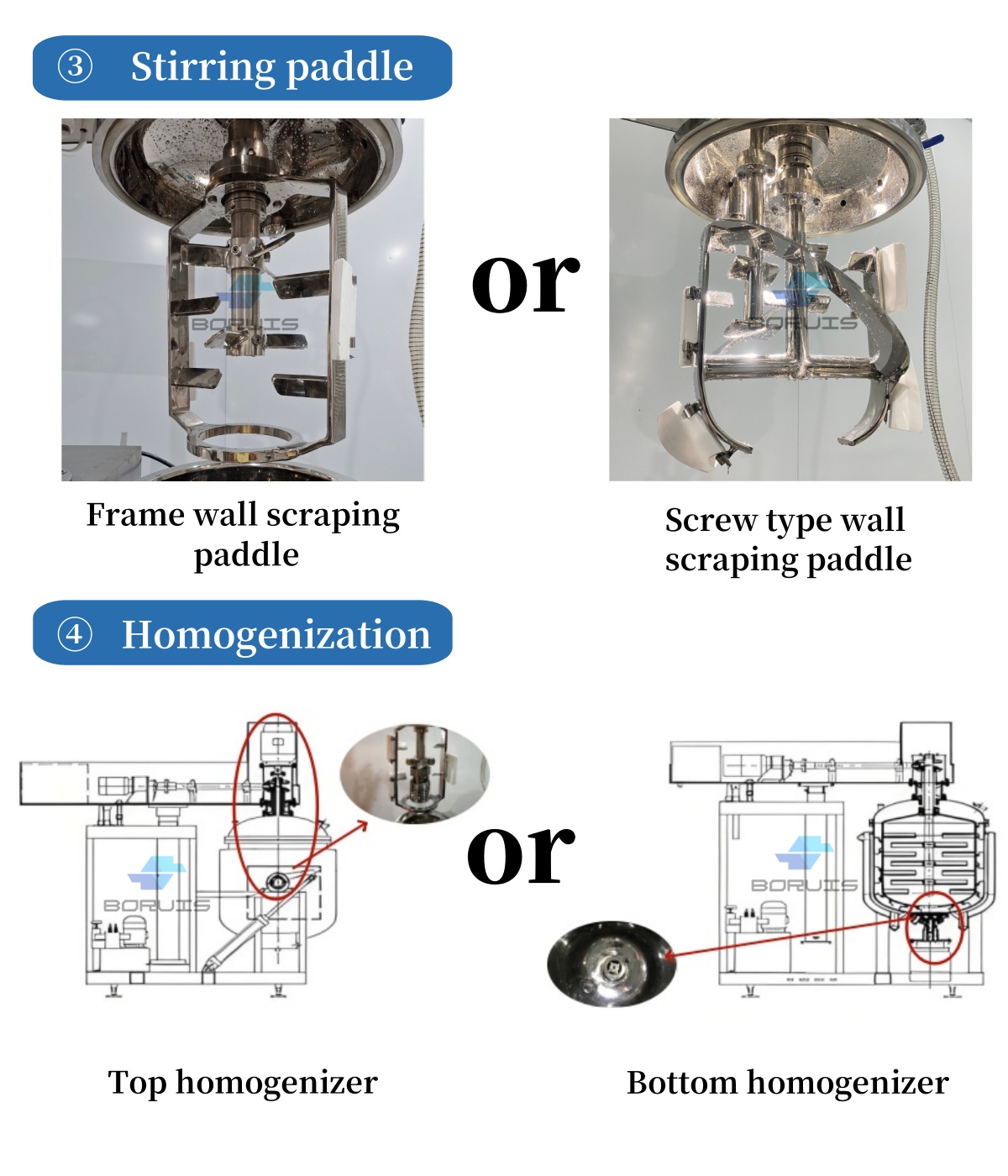

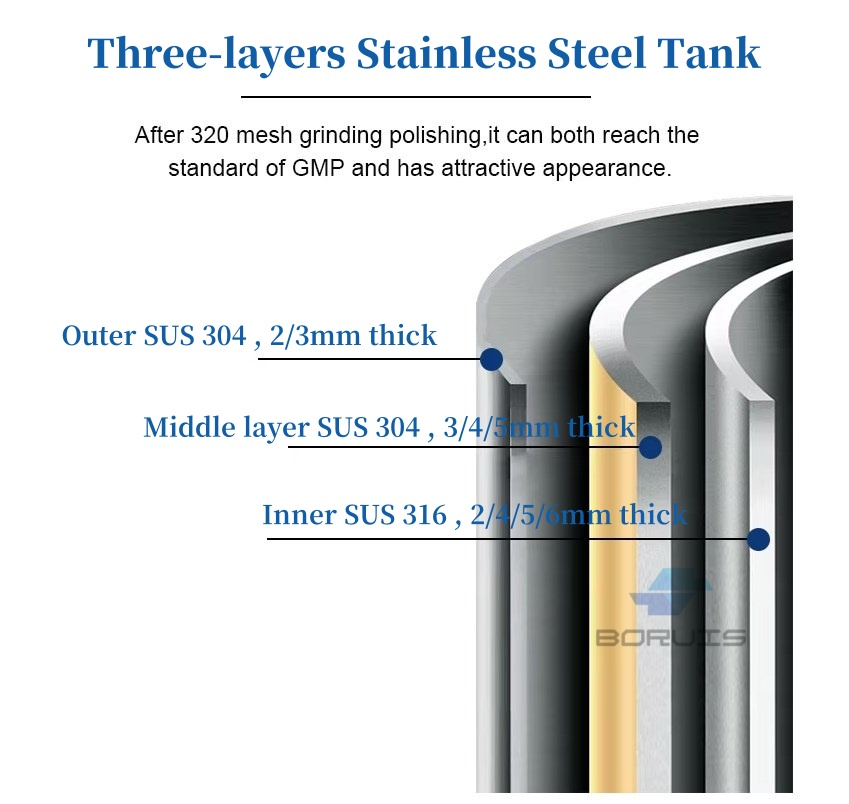

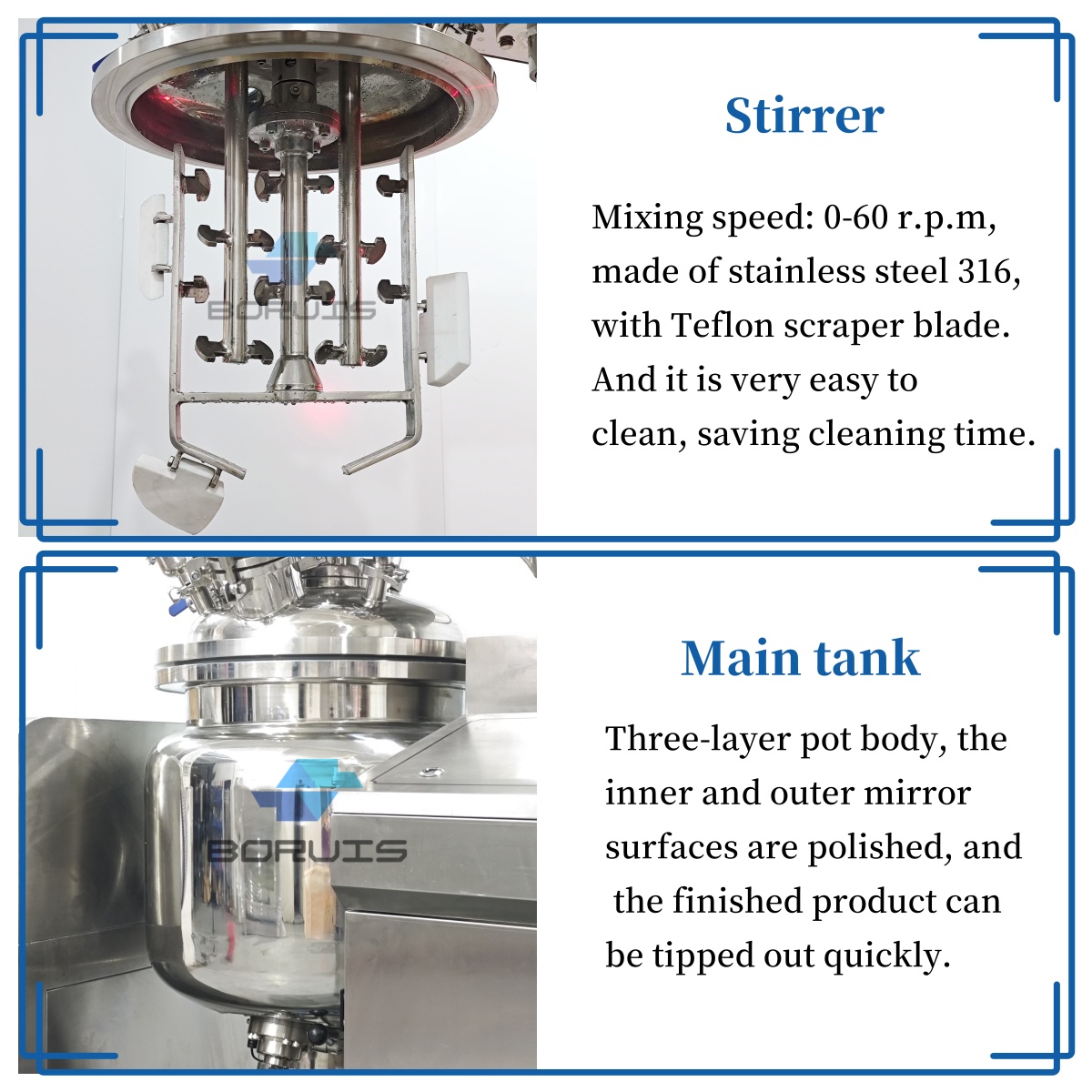

Mixing Paddle Configuration
Homogenizer Head Assembly

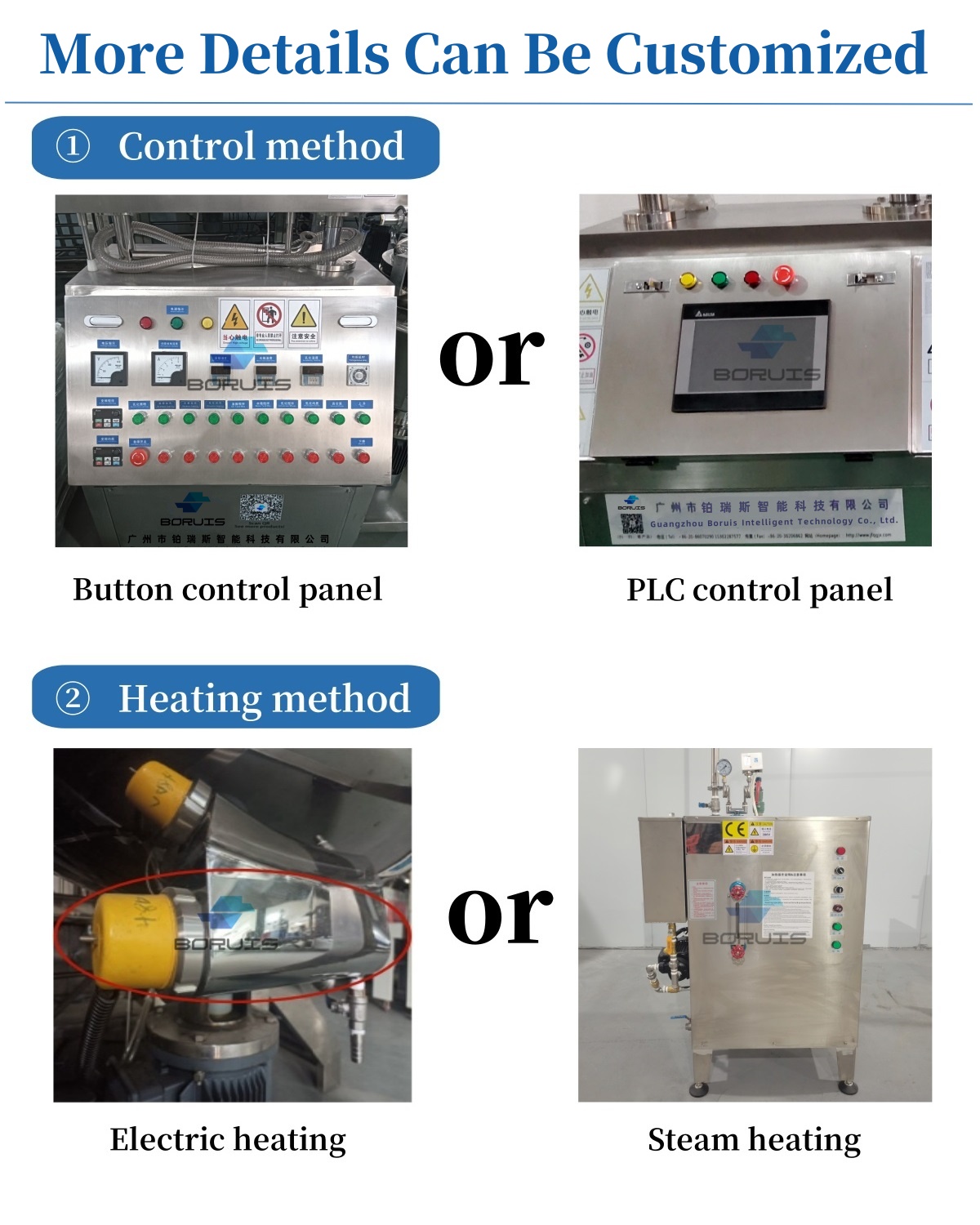

Electric Control Cabinet Panel

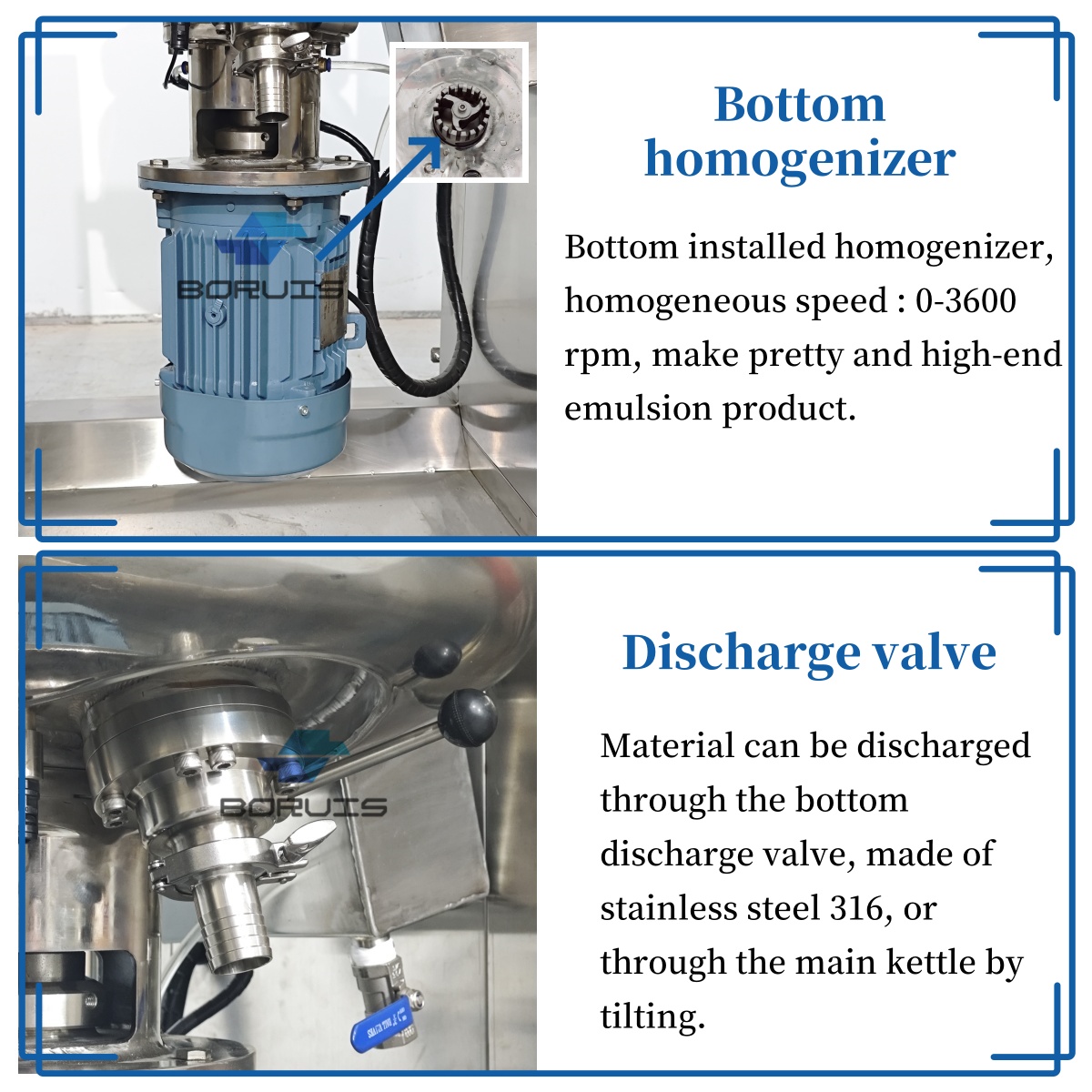

Control Valves & Pipes
Pressure Gauge & Safety Valve

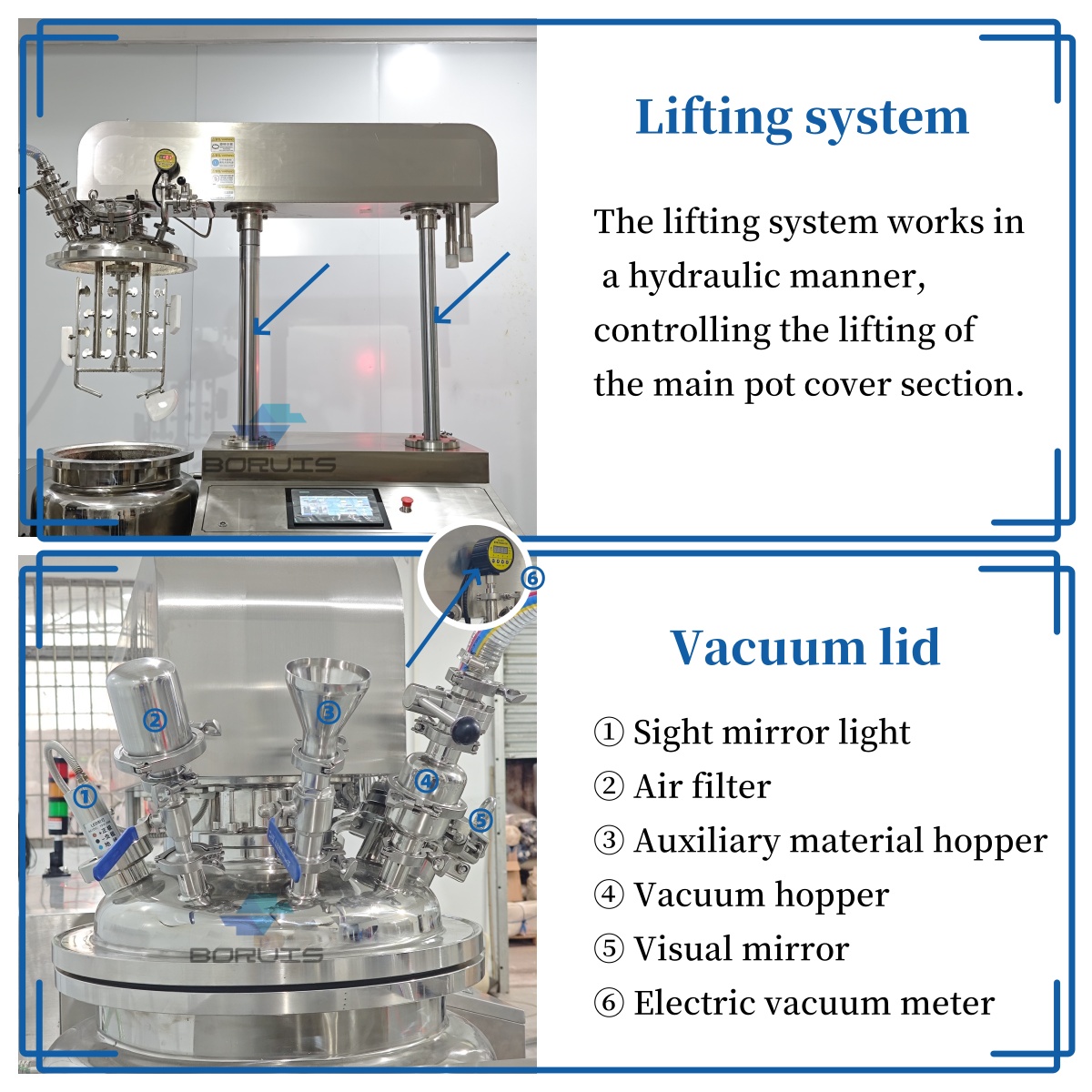

Hydraulic Lifting System Cylinder
Motor Drive Detail
Dimension Layout Diagram

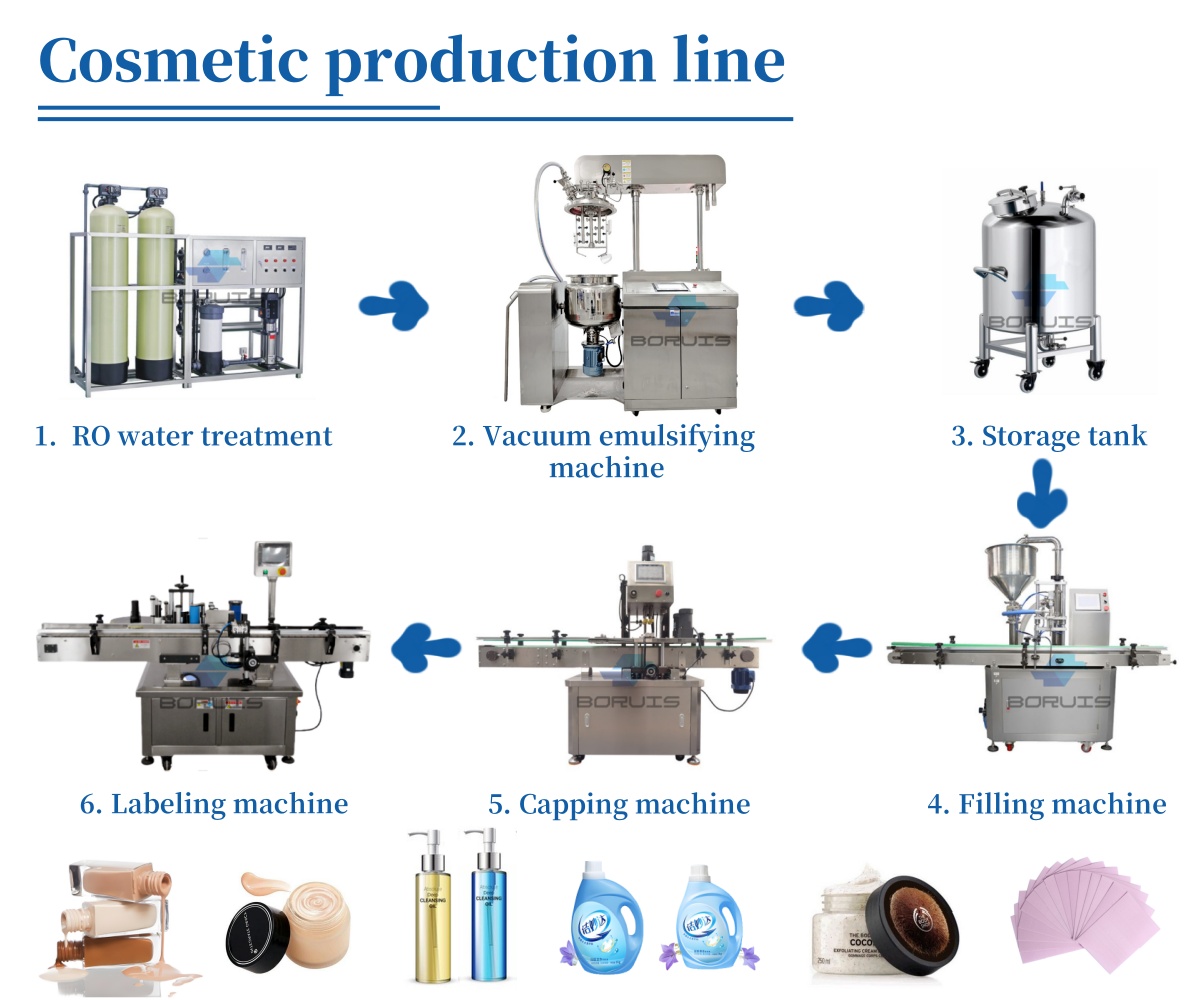

Production Process Schematic

Packing & Delivery

  • Package: Wrapped with PE film inner cover for moisture protection, followed by robust standard export plywood cases.
  • Acceptable Terms: EXW, FOB, C&F, CIF, etc.
  • Shipping: Flexible shipping routes via Express, Air, or Sea based on customer requirements and cost-saving objectives.
Packaging Preparation

Manufacturing Facility

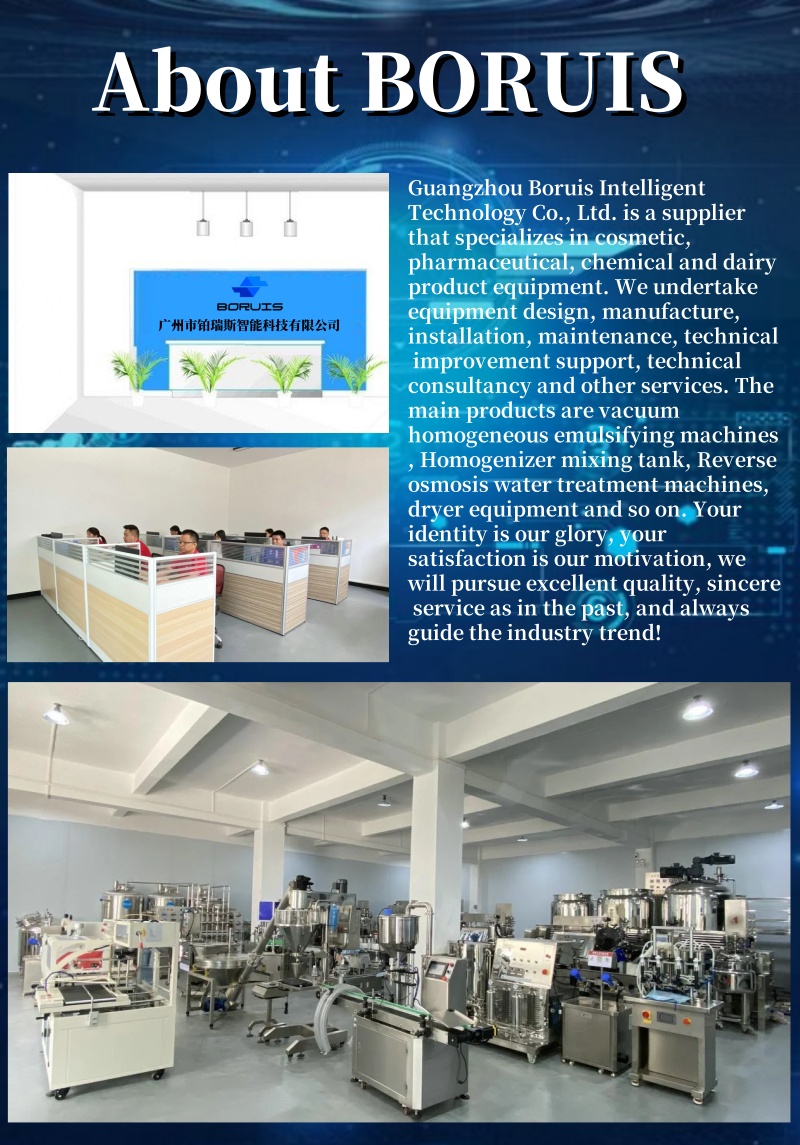

Factory Assembly Floor 1

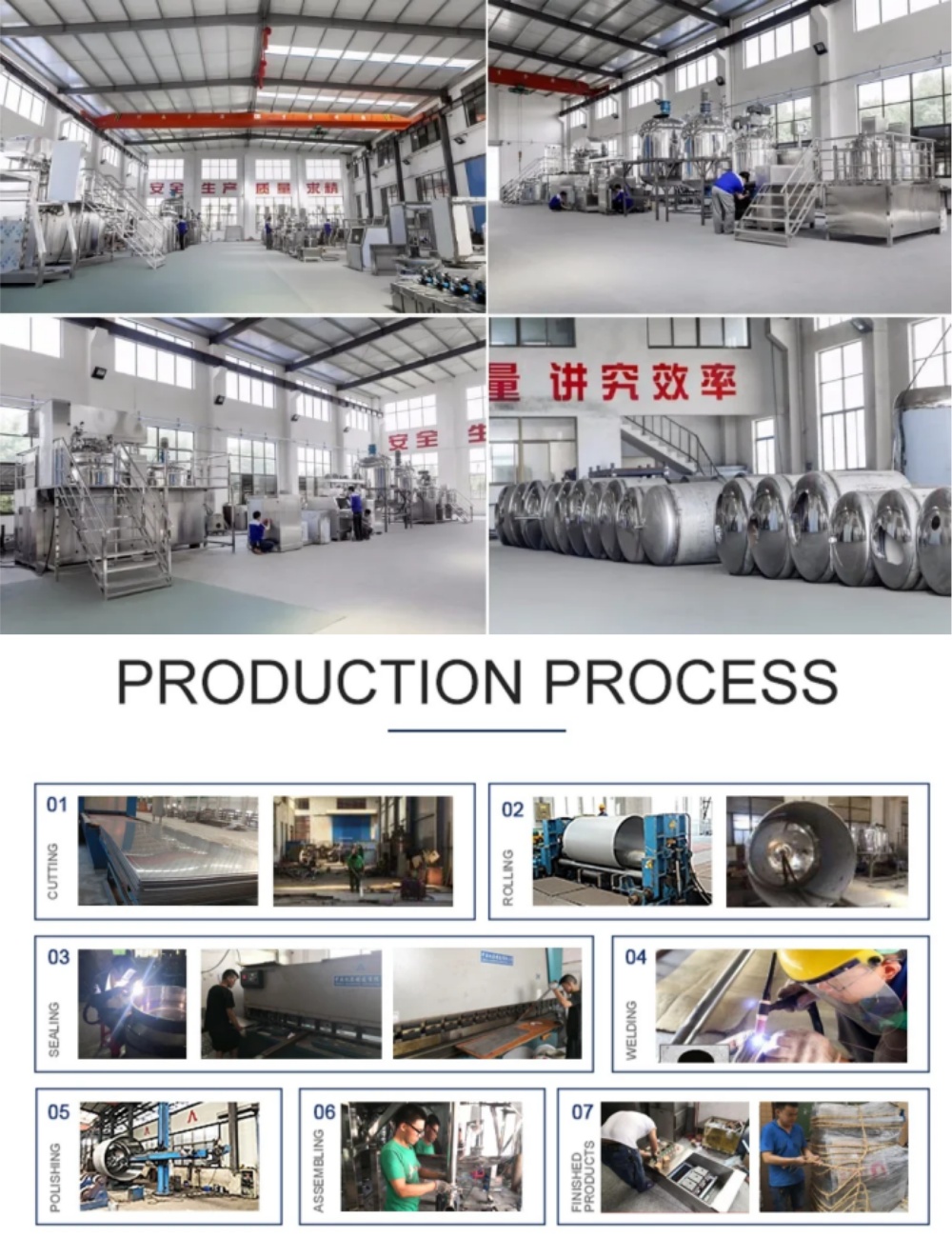

Factory Assembly Floor 2

Certifications

Quality Standard Certifications

Frequently Asked Questions

Factory QC & Inspection Area
Equipment Testing Panel
What types of products can this vacuum emulsifying mixer manufacture?
This equipment is highly optimized for producing ointments, face creams, cosmetic emulsions, medical lotions, gels, and chemical pastes. It performs exceptionally well when handling high-viscosity formulations and materials with high solid contents.
What main components are included in a standard unit?

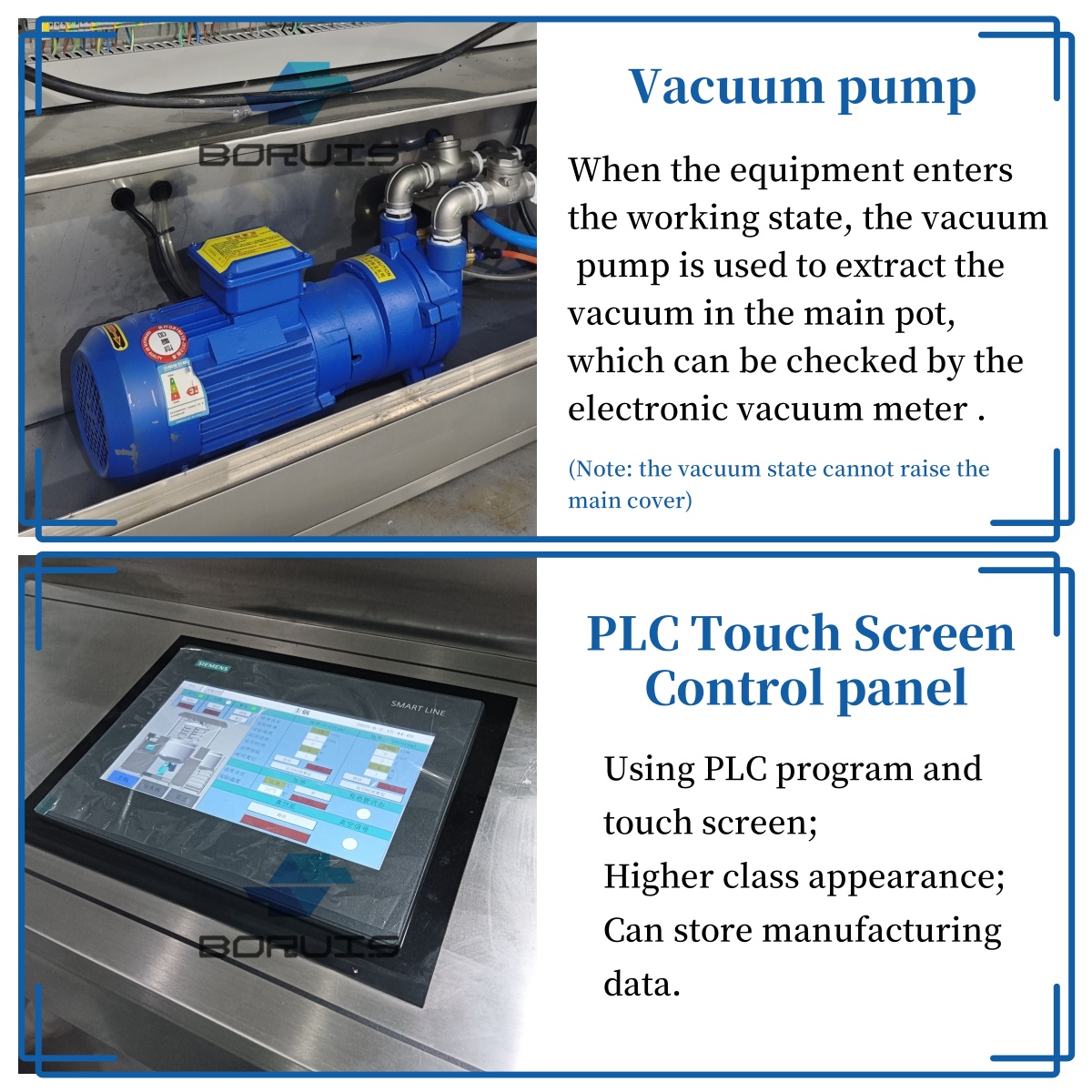

A complete system unit is composed of a pretreating boiler (water and oil phase), a main vacuum emulsifying and blending boiler, a vacuum pump, a hydraulic lifting system, a tilting/dumping system, a modern electric control system, and a stable working platform.
How does the vacuum system benefit the emulsification process?
The vacuum system keeps the mixing process airtight, preventing external contaminants and removing air bubbles from the emulsion. This ensures the output creams or ointments are smooth, glossy, stable, and have a longer shelf-life.
Can we adjust the mixing and emulsifier speed?
Yes, speed adjustments are fully supported. The homogenizer/emulsifier works within 0-3000 R/min and the scraper agitator within 0-40 R/min, allowing you to fine-tune the speed settings using the variable frequency drive in the control panel.
How is the machine cleaned and maintained?
The machine is designed with convenience in mind. The boiler cover can be raised using the hydraulic lifting system to allow easy interior access. The main boiler is also equipped with a CIP spray ball for automatic water/cleaning agent circulation.
